4 in Plate Casters Orange with Brake
- Quantity: 4 With Brake

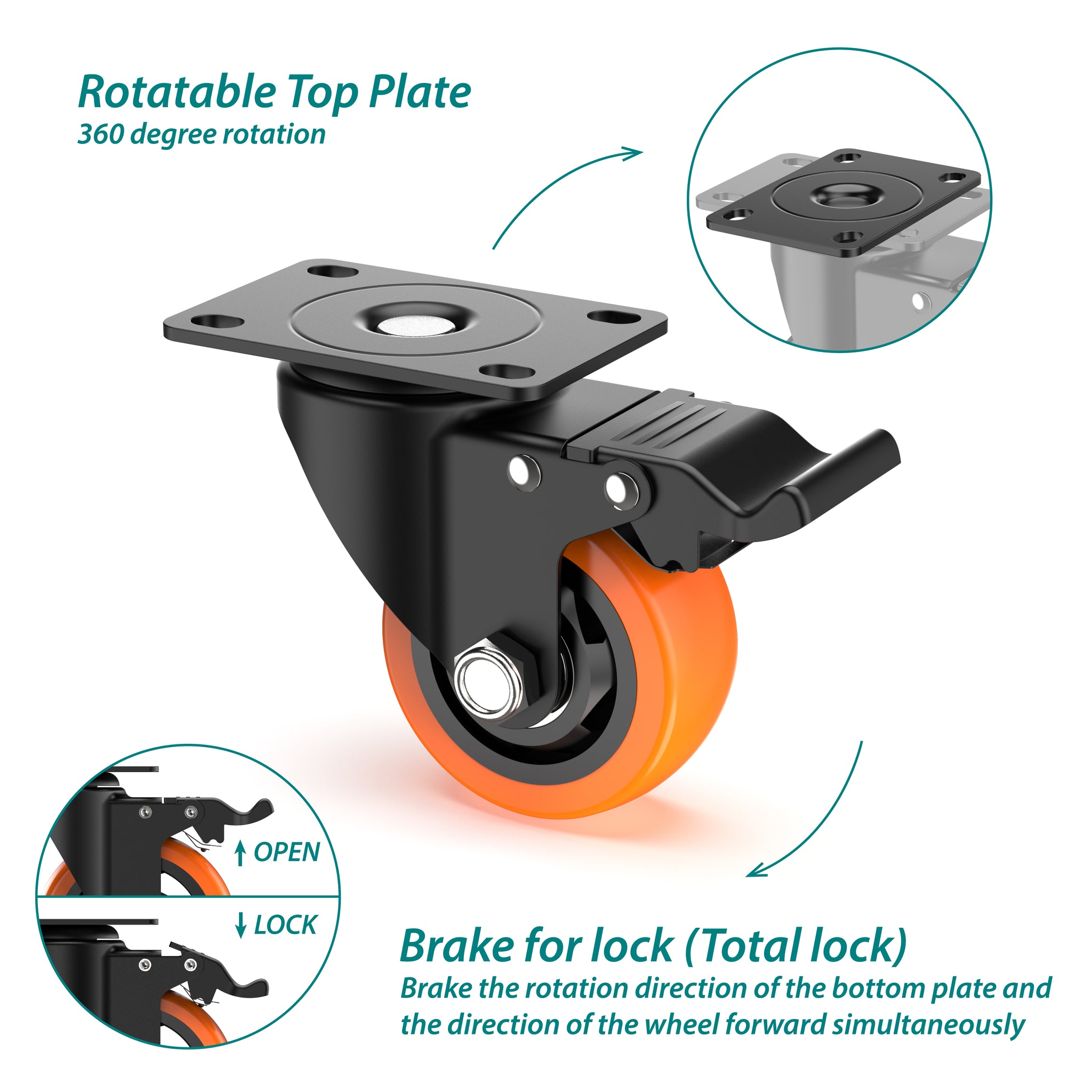

- Swivel: Yes
- Total Lock: Yes
- Wheel Diameter: 4 in (101.6mm)
- Load Capacity: 1200 lbs (544.3kg)
- Wheel Bearing: Double Sealed Ball Bearings
- Accessories: 16 Sets of Bolts & Nuts
| Name | Value | Metric Value |
|---|---|---|
| Quantity | 4 | |
| Overall Height | 5.1 inch |
129.5mm |
| Special Features | Swivel; Total Lock |
|
| Bearing Type | Double Sealed Ball Bearings |
|
| Wheel Tread Material | PVC | |
| Wheel Tread Color | Orange | |
| Wheel Tread Diameter | 4 inch |
101.6mm |
| Wheel Tread Width | 1.2 inch | 30.5mm |
| Load Capacity (Set of 4) | 1200 Lbs |
544.3kg |
| Brake Type | Top Brake | |
| Swivel Lock | Yes | |
| Mounting Type | Top Plate |
|
| Top Plate Size | 3.7 inch × 2.5 inch | 94 mm × 63.5 mm |
| Hole Spacing |
2.88 inch × 1.75 inch | 73.2 mm × 44.5 mm |
| Hole Width | 0.3 inch |
7.6mm |
| Caster Finish / Coating | Zinc Plated Steel |
|
| Warranty Duration | 1 Year |
| Name | Value | Metric Value |
|---|---|---|
| Quantity | 4 | |
| Overall Height | 5.1 inch |
129.5mm |
| Special Features | Swivel; Total Lock |
|
| Bearing Type | Double Sealed Ball Bearings |
|
| Wheel Tread Material | PVC | |
| Wheel Tread Color | Orange | |
| Wheel Tread Diameter | 4 inch |
101.6mm |
| Wheel Tread Width | 1.2 inch | 30.5mm |
| Load Capacity (Set of 4) | 1200 Lbs |
544.3kg |
| Brake Type | Top Brake | |
| Swivel Lock | Yes | |
| Mounting Type | Top Plate |
|
| Top Plate Size | 3.7 inch × 2.5 inch | 94 mm × 63.5 mm |
| Hole Spacing |
2.88 inch × 1.75 inch | 73.2 mm × 44.5 mm |
| Hole Width | 0.3 inch |
7.6mm |
| Caster Finish / Coating | Zinc Plated Steel |
|
| Warranty Duration | 1 Year |
Our Series Heavy duty casters support total weight capacities of 1200 lbs. They function well in day to day use and general-purpose applications. Heavy Series include a wide range of light/medium/heavy duty casters in zinc, stainless steel and black Cataphoretic Coated Steel models. The Heavy Series product line also includes our Precision Raceway line of heavy duty casters that utilize double precision bearing raceway in the swivel. These very specialized casters are guaranteed to increase performance and reduce noise in any application.
| ✔ Material handling | ✔ Dollies |
✔ Industrial |
| ✔ Distribution | ✔ Tool boxes | ✔ Automotive Equipment |
| ✔ Kitchen equipment |
✔ Platform & Stock trucks | ✔ Trash, cargo containers |
Our Series Heavy duty casters support total weight capacities of 1200 lbs. They function well in day to day use and general-purpose applications. Heavy Series include a wide range of light/medium/heavy duty casters in zinc, stainless steel and black Cataphoretic Coated Steel models. The Heavy Series product line also includes our Precision Raceway line of heavy duty casters that utilize double precision bearing raceway in the swivel. These very specialized casters are guaranteed to increase performance and reduce noise in any application.
| ✔ | Material handling |
✔ | Kitchen equipments |
|---|---|---|---|
| ✔ | Dollies |
✔ | Industry |
| ✔ | Toolboxes | ✔ | Distribution |
